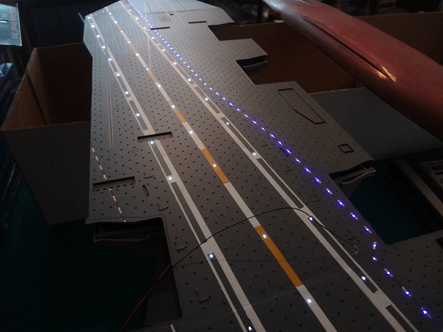

Een interessant artikel van ene “Wolfman 63”: https://cs.finescale.com/fsm/tools_techniques_and_reference_materials/f/13/t/175940.aspx over het gebruik van fibers en LEDs. Hieronder delen van het artikel overgenomen.

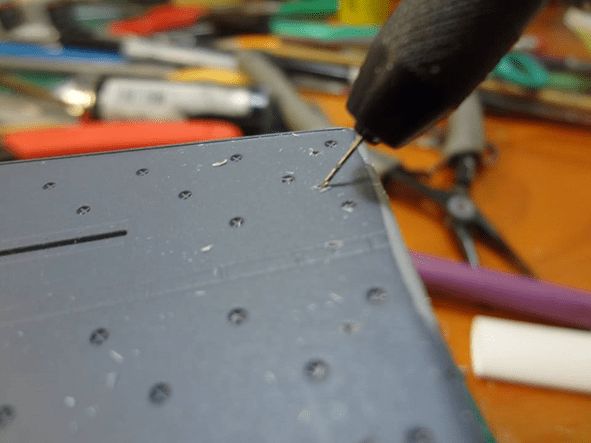

- drill a hole where you want the light to be,
- 0.5 mm optic lines: holes 0.5mm, at a 45◦ angle,

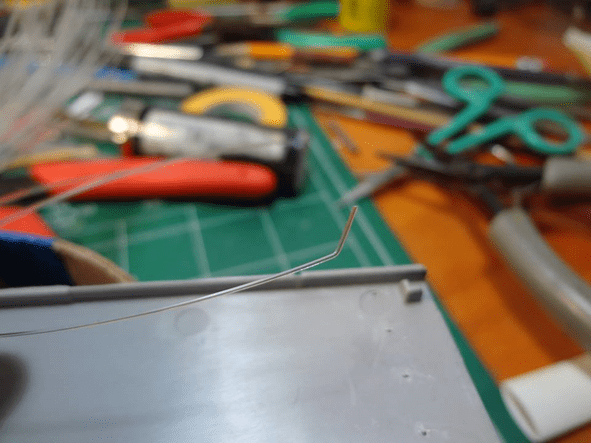

- bend fiber optic line at a 45◦ angle,

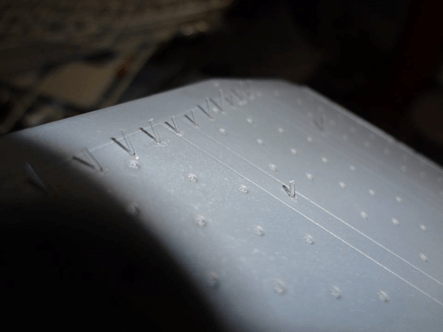

- 4mm above the surface on the light side,
- after painting: trim flush.

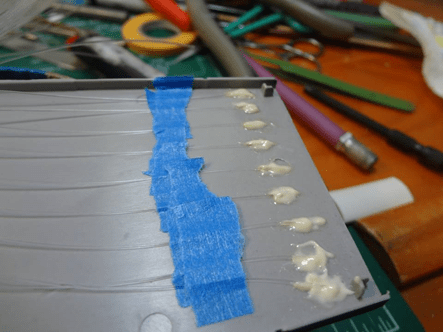

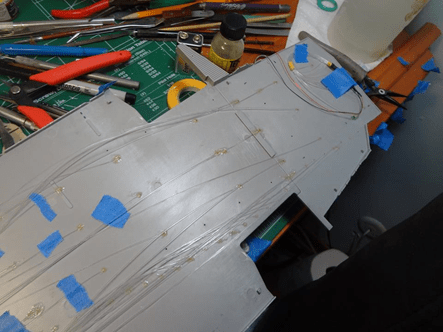

- place lines in a bundle taped and trimmed flush,

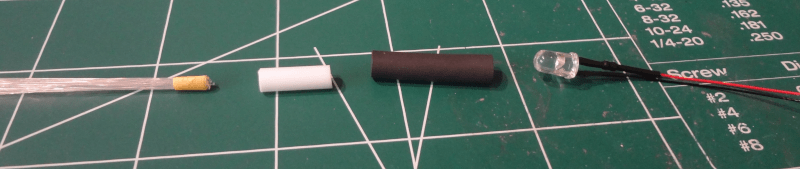

- cut 7mm shrink sleeving,
- insert 5mm LED into sleeving,

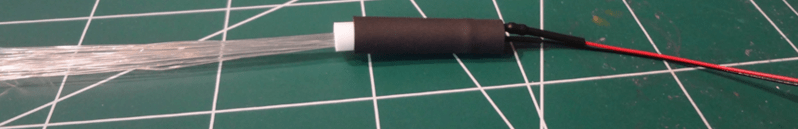

- shrink sleeving.
